Loose radial lead cutter

HS-360 Standard
HS-360C With counter 　

Size: 500mm (L), 430mm(Width), 470mm(H)

Weight 20 Kgs.

An efficient and best choice for loose radial component lead-trimming operation.

Using linear vibrator feeder feeding the components to ensure exact cutting and continue operation. The components may be hand fed or fed by an external bowl feeder (optional). Counter can also be optional selected.

Equipped with durable linear cutting blade ensure a clean and quiet operation. The Cutting length is adjustable from 3mm to 20mm, max 3mm wire lead diameter can be cut in this machine. The trimmed leads are collected separately in waste tray.

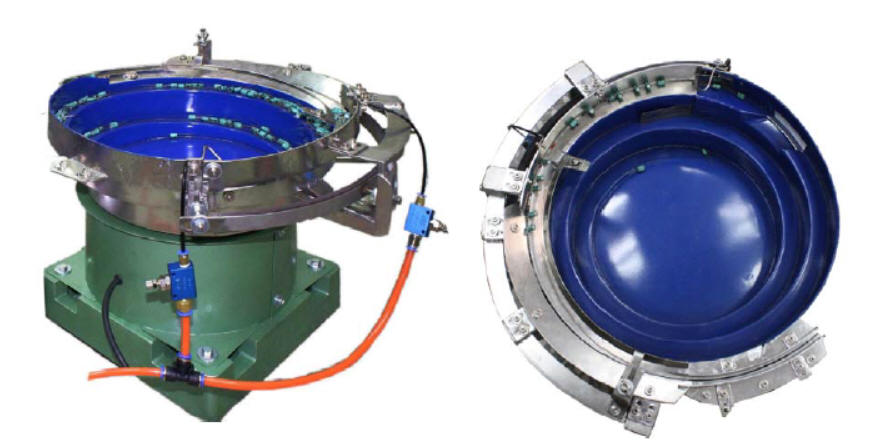

Bowl Feeder - Model BF430

general purpose model which are available for feeding various kind of components through adjustment .

It feeding the components automatically and adjusted according to the outside configuration of the components and working in loose radial lead cutting model .

　

Type of Components

Configuration

Range of Size

Example

Electrolytic Capacitor, LED, Transistor etc.

Cylindrical

Range of Outside diameter
*4mm ~ *8mm

Mila film Capacitor, Power Transistor, Square LED etc.

Cuboid

3mm(L) * 3(W) *3(T) ~
15(L) * 23(W) * 8(T)

Ceramic Capacitor

Oblate

*4mm(OD) *3mm(T) ~
18mm(OD) *6mm(T)
