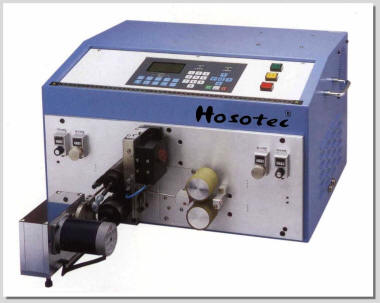

自動切線剝線扭線機 Model HS-WCST06 |   |
全自動的剪線，剝線和絞線功能。 智能LED控制面板提供了簡單而精確的解決方案來設置參數。
自診斷系統已安裝，可在異常工作狀態下警告或終止機器。 精確的數字控製刀具間隙和壓力等
本機使用卡式硬質合金切割刀片，可確保工作可靠性和長壽命。 更換和維護也很容易。
|
工作效能| Type | Wire length (mm) | 20mm | 60mm | 100mm | 500mm | 1000mm | | A | Pcs/hr | 27,300 | 20,200 | 18,000 | 9,960 | 6,480 | | B | Pcs/hr | 10,200 | 9,420 | 8,820 | 6,360 | 4,740 | | C | Pcs/hr | 9,300 | 8,850 | 8,400 | 6,100 | 4,600 | | D | Pcs/hr | 10,800 | 9,240 | 8,700 | 6,240 | 4,680 |
Type A: 兩端均不剝離
Type B: 左右兩端剝皮3mm
Type C:
左端剝線5mm，右端剝線8mm
Type D: 左右兩端剝皮5mm，半剝皮3mm

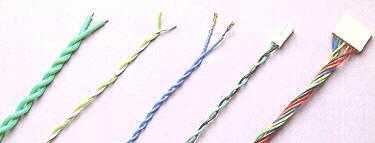

扭線效能| Type | Wire length (mm) | 60mm | 100mm | 500mm | 1000mm | | A | Pcs/hr | 2,880 | 2,760 | 2,400 | 2,100 | | B | Pcs/hr | 2,760 | 2,700 | 2,340 | 2,040 | | C | Pcs/hr | | 2,580 | 2,280 | 1,980 |
|  |

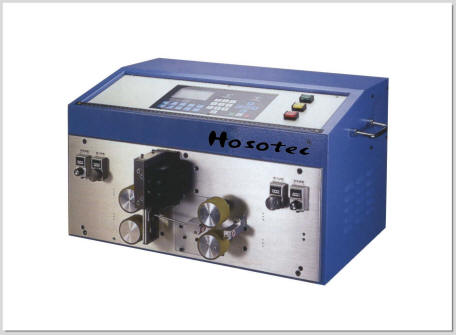

自動切線剝線機
Model HS-WCS06 | Specification | | | | Model | HS-WCST06 | HS-WCS06 | | Power | AC 220V (110V Optional) | AC 220V (110V Optional) | | Size | 600mmx760x350 | 600mmx480x350 | | Weight | 65kg | 55kg | | Power consumption | 450W | 450W | | Cutting range | 1mm ~9999mm | 1mm ~ 6000mm | | Cutting tolerance | Within 0.5％ | Within 0.5％ | | Stripping length | 1-30mm | 1-30mm | | Semi-stripping L | 1-30mm | 1-30mm | | Twist L | 3-25mm | - | | Twist Core | AWG#30~16 | AWG 18 - 30 | | Length set | mm | mm | | Wire style | PVC,Teflon,Kynar | KV, IV,PVC,Teflon,Kynar | | Core size | AWG 12 -32 | AWG 12 -32 | | Wire diameter | Max. ø4.0mm | Max. ø4.0mm | | Motor | Stepping | Stepping | | Feeding speed | Adjustable | Adjustable |
|  |  |

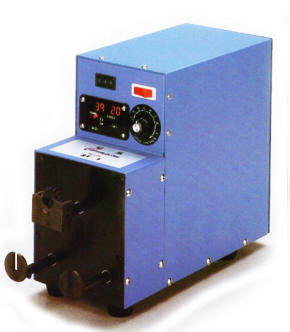

自動繞線機 Model ST-1
 |
| Specification | | | Power | 220V (110V optioanl) | | Wire range | AWG 18 - 32 | | Speed | Max. 2200 SPM adjustable | | Weight | 10kgs | | Size | 350mm D, 130 W, 250H |
|

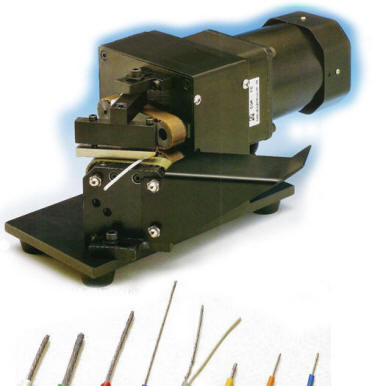

半自動絞線機 Model CT-1
 | Twisting the overall stripped wire, manual feeding the wire| Specification | | | Power | AC 220V (110V Optional) | | Power consumption | 100V | | Twist Length | 3mm - 30mm | | Core size | AWG 14 -32 | | Wire style | KV, IV,PVC,Teflon,Kynar | | Wire diameter | Max. ø3.5mm | | Working capacity | 18,000pcs/Hr | | Weight | Max. ø3.5mm | | Motor | 11kgs | | Size | 350mm W, 160D, 160H |
|

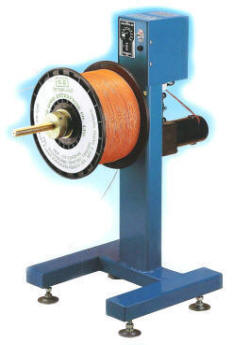

Auto wire feeder
Model WT-1 | Wire feeder
Model WT-66 | Auto wire feeder

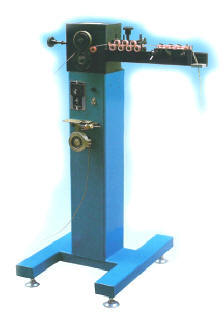

Model WT-1 | Auto wire straightener
Model WT-747 |  |  |  |  |
|
