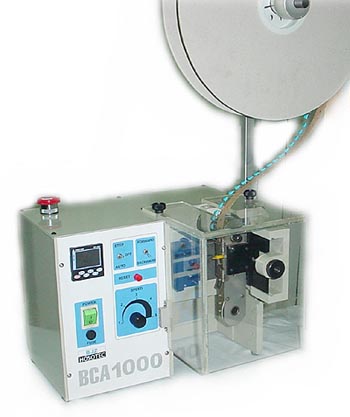

Taped radial lead former - BCA-1000 High efficiency 15,000Pieces (max)
General purpose taped radial lead former, suitable for various kind of forming, cutting and bending.
Building- in LED display counter . production quantity can be preset
With powerful DC blushless motor. Ensure high torque in low speed. Forming speed free adjustable.
Safety cover with emergency pushbutton is equipped to ensure the safety in operation
Spec:
Power: 110V(220V optional) Size: 32 cm x 28cm x 19cm Weight: 20Kgs
Taped radial lead cutter - HS-79
Dimensions: 380(L) x 180(W) x 210(H)
Net Weight: 6 kgs
Production Rate: 50,000 pcs/hr
The machine cuts components from single bandoleers with a fully adjustable lead length from 2 mm to 10mm and the blade will accommodate lead gauges from 0.3 mm to 1.2 mm.
The sturdy construction of the machine provides maximum reliability and a very long life. A rotary knife effects a straight cut of the leads without any effort, ensuring long-lasting and perfect performance of cutting blades. A toothed drum ensures leads are perfectly parallel during the cutting process. it provide the correct lead configuration for easy insertion onto the PCB.
Motor driver unit is an optional selection, as These models have the same features of the Model HS-79 except that they come with the electric driver unit.

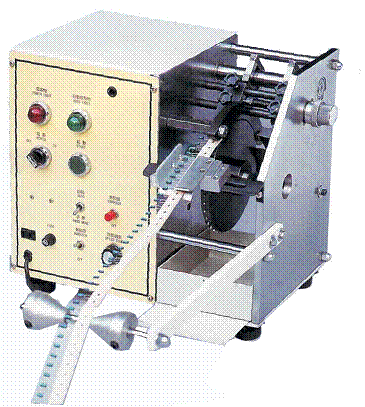

Motorized available - HS-70
Dimensions: 470(L) x 180(W) x 235(H) mm
Net Weight: 13kgs
Production Rate: 50,000 pcs/hr
Dimension
L
D
A
L
D
A
Min.mm
2
0.3
12.7
2
0.3
12.7(15)
Max.mm
10
1.2
12.7
10
1.2
12.7(15)
Taped radial lead cutter - HS-79K, HS70K
HS-79K is the machine with additional kinking function. The distance of kinking can be easily adjusted.
HS-70K Motorized model

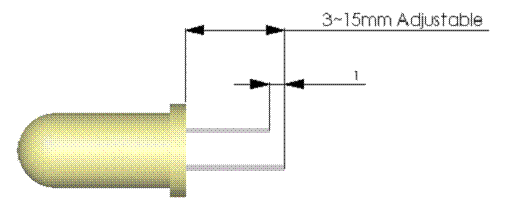

Taped radial lead cutter –for polarity identificationHS-390
The machine is specific design for polarity identification cutting the taped radial components such as LED, capacity.
