IC forming, cutting, bending and kinking machines.





The ICs are directly processed from the sticks and for better performance the ICs can  be automatically fed into an empty stick after preforming.



Due to the simple design of the machine, the operation and setup of the machines are very easy and large scale adjustments are not required.



The handling of different pitches is achieved by changing the feeding rails. The standard model ICF-106 sets the IC leads to the right pitch. For additional cutting and kinking of the leads customized machines with special tooling are available.



Specifications:

Dimensions: 500(Width) x 400(Deep) x 300 mm (Height)

Weight: 16 kg

Power supply: 220 Volt, 50/60 Hz (optional 115 Volt)

Performance: 7 sec./standard IC tube






Rolling type IC forming machine ICF-100



Before mounting ICs to the PCB,  it may be necessary to alter the pitch of the leads.

This product preforms the legs of ICs in order to present a correct entry angle into the PCB saving valuable production labor time.



The performance of the model can be 3 sec for standard IC tube. The ICs are directly processed from the sticks and automatically fed into an empty stick after preforming. Simple and easy operation design.



The pitch of rail is free adjustable from 0.3" to 0.8", unnecessary to exchange rail for various IC dimensions.



Specifications:



Dimensions: 200 x 400 x 300 mm

Weight: 10 kg

Power supply: 220 Volt, 50/60 Hz (optional 115 Volt)

Performance: 3 sec./standard IC tube

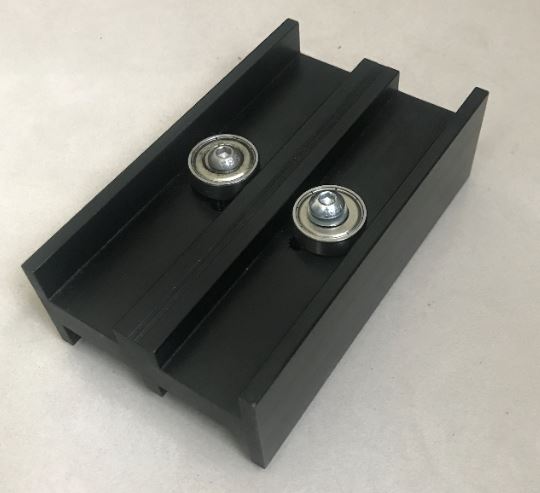

 IC Straighter  ICF-10

Solid and compact design straightening the IC leg in easy way



Specifications:



Dimensions: 75x 126 x 38 mm

Weight: 0.4 kg
