Counter

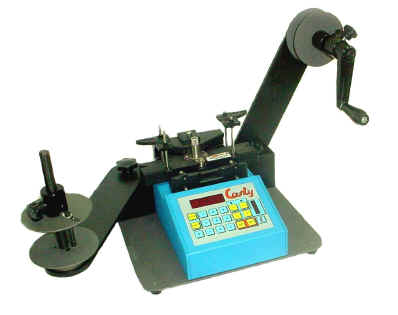

Model HS-8301
Multi-purpose, microcomputer based  components counter which count axial and radial components and adapter for SMD components.
Equipped with special design arm set for either axial, radial and SMD tapes

*Counting in both direction (Left and right)
*Divider from 1 to 19
*Totalizer mode counting
*Preset mode counting (With audible signal)
*Calibration test and self diagnostic procedure.
*Last counting value and condition memory.
*External detector input.
Spec:

Max. counting value: 9999
Min. lead diameter: 0.35
Axial tape width: 55 - 110mm
Max. component dia.: 14mm
Display: 4 digit Height 13mm
Size:  257mm x 277mm x 110mm
Weight:  7 Kgs
Counter
Model
GAM12N

For counting SMD components

- Pre-selection mode
- Reel derailment protection
- Counting in both directions (left or right)

Specifications:

 dimensions:     289 x 419 x 152 mm

weight:     6 kg

power supply:  230 / 115 V, 50 / 60 Hz

reel diameter:  max. 450 mm approx.

count capacity:        -99999 up to 99999

pitch:       2, 4, 6, 8, 12, 16, 20, 24 , 32, 36, 40, 44, 48, 52, 56 mm

reel width:        8, 12, 16, 24, 32, 44, 56 mm
