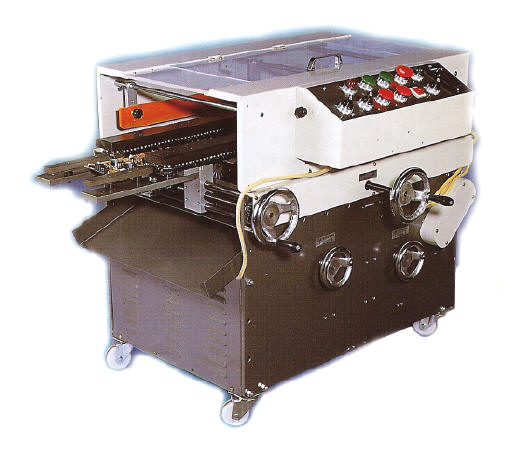

HS-66B Automatic  PCB lead cutter integrated with brushing system

Brief introduction



A model design to trim the extra long leads automatically and integrated with brushing system. The machine perform efficiently on the PCBA that components inserted and soldered then brushing the boards.

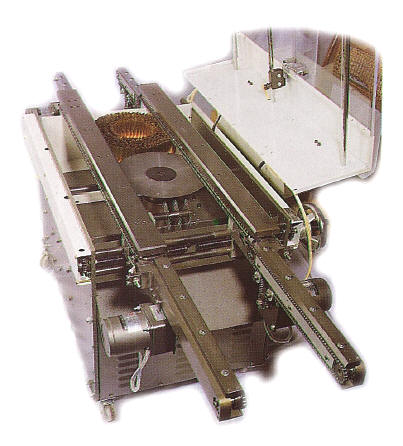

A pair of conveyor chain is equipped in the model in which clamp and deliver the PCBA to the blade turning in high speed for trimming.



Warp prevention device is equipped to ensure no damage on boards.



Expandable in function and working independently– The model can be optional connecting in line with wave soldering machine by Connection Bridge and operates automatically.



Equipped with adjustable warp correction device in which correct the warp condition of PCB before soldering process.



The inlet and outlet bridge conveyors are optional selectable which flexible for connecting the wave soldering machine and conveyor line.





Spec and application range


1.Tungsten carbide blade: I.DÆ70mm, O.D Æ200mm&Æ250mm both size



2.Thickness of P.C.B: 0.8mm~2.5mm


3.Range of PCB width: 10mm ~ 300mm


4.Power: AC220V .50Hz or 60Hz (Please specify in ordering)



5.Main spindle speed: 4500rpm



6.Main spindle motor: 3/4HP x2



7. Conveyor speed: Free step adjustable, 0~3m/minute.



8.Cutting height: 0.6mm min. (optional track for less height)
