Lead-free
Wave soldering machine
Economy
HS250C, HS250E
Designed to meet VOC-free fluxer and
Lead free solder production

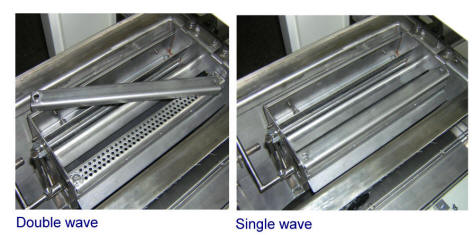

 A mini and economical solution for lead free soldering process. compact and solid construction for PCB width from 30mm ~220mm. Double /single wave selectable solder bath with PID+SSR automatically temperature control.


  ●Weekly Timer for Solder Pot

  ●Pre-heater ON/OFF Switch

  ●Pre-heater Temp. Controller

  ●Solder Pot Heater ON/OFF Switch

  ●Solder Pot Temp. Controller

  ●Wave ON/OFF Switch

  ●Wave Height Setting Knob

  ●Conveyor ON/OFF Switch

  ●Conveyor Speed Setting Knob

Safety Device

  ●Emergency Stop Switch Button

  ●NFB for Main Power

  ●NFB for Control Circuit

  ●Overheat Alarm

  ●Wave Motor Low Temp. Protect

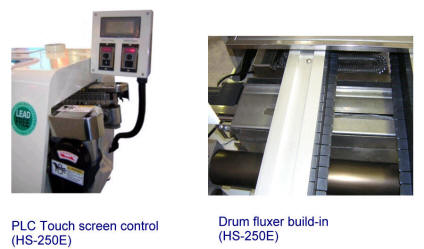

The HS250E with Volume adjustable build-in drum fluxer. touch screen PLC control.

The HS250C with build-in
foaming fluxer. The spray volume and pressure can be adjusted for each PCB's

Main construction
lnlet chain Conveyor, Foaming Fluxer(HS250C),Pre-heater Single or double  Wave Soldering Bath,
Finger Chain Conveyor, Control System

Specification

Model

HS250C

HS250E

Power requirement

3φ220V, 50/60Hz

Energy consumption

8.5KVA

8.5KVA

Compress Air

5kg/cm², 5 CFM

Conveyor angle

2-6° Adjustable

Conveyor speed (50/60Hz)

Max. 1.3M/min, / 1.6 M/min

PC board size

Min.30-Max.220mm

Fluxing style

Foaming fluxer

built-in drum spray fluxer

Pre-heater zone length

420mm

420mm

Pre-heater consumption

2.4kw

2.4kw

Solder pot max. working temp.

300°C

Solder capacity

120Kgs

Solder pot power consumption

4.8KW

Solder pot motor/Wave type

60 W /single or double wave

Solder wave height

10mm Max

Main conveyor motor

25W

Main conveyor finger

L Type

Inlet conveyor

Chain

Chain

Outline dimension

1,850×750×885mm

Net weight

260kg

Lead-free
Wave soldering machine

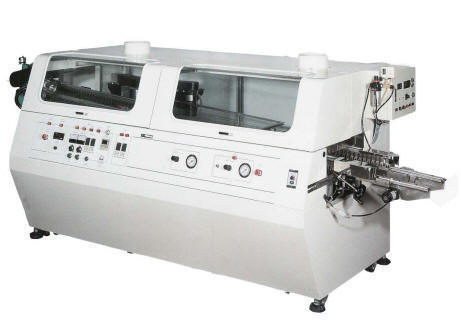

Model HS1400DF
Designed to meet VOC-free fluxer and
Lead free solder production

Solder pot

Gemini double wave soldering module is consisted of acid-proof stainless steel  pot, which is equipped with internal elements, pump housing and high stable motor.
Gear and wheels build onto the solder pot can be slide and makes maintenance easy.
    P.I.D. closed loop controls keep precise solder temperature. Designed to meet the Lead-free solder directives.

Finger conveyor system

The finger transport system with a variety of fingers is available to handle PCB's or pallets. Easily removable titanium fingers make maintenance simple. Special designed of conveyor width adjustment can be repeatable and precise, a degree of adjustability that may perform all realistic soldering operations. A recycle liquid brush finger cleaner and inlet conveyor are provided as standard.

Fluxer

Easy to change fluxing systems. You may choose Foam, Drum or Spray Nozzle. Drum spray fluxer is standard equipped. The spray volume and pressure can be adjusted for each PCB's. Automatically counts the spraying time by encoder. In standard, the flux specific gravity meter measurement insures precise flux chemistries. The fluxer system can be comprised of either rosin-base or water-base (VOC-free) fluxes.

Pre-heater

New type of preheating system with multi zone, Long Wave heater of stainless sheathe with fin, Forced convection. The unit is mounted on retractable railings. The pre-heater is equipped with an easy removable topside cover of heatproof glass. To ensure the various production and demands, including water-based (VOC-free) fluxes.



Options

Pre-heater in front of Fluxer

Form, Nozzle spray Fluxer

Auto Flux Controller

L-shaped fingers

Auto solder addition
Further option upon request

Outline and Controller

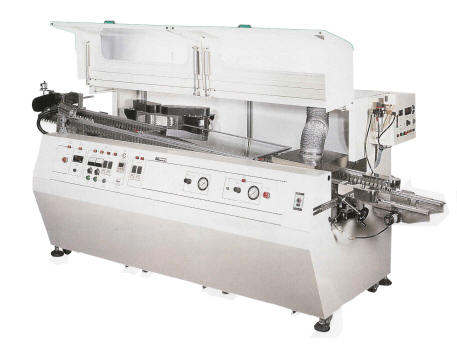

The machine designed a modem outline with two hinged front doors and easy removable rear sliding doors. The control panel at the front side gives setting and maintaining quickly and easily. A weekly timer for solder pot heater is provided as standard.



Specification


Power requirement

3φ220v/380v415v, 50/60Hz

Energy consumption

25.6KW

Air requirement

5kg/cm² , 5 CFM

Conveyor angle

2-6° Adjustable

Conveyor speed (50/60Hz)

Max. 2.0M/min, / 2.5 M/min

PC board size

Min. 35-Max.350mm

Fluxing style

Foaming fluxer
(Spray fluxer optional)

Pre-heater zone length

1400mm

Pre-heater consumption
(1 st Stage near solder pot)

6.6kw

Preheater consumption
(
2 nd Stage near fluxer)

6.6kw

Solder pot max. working temp.

300°C

Solder capacity

250kg

Solder pot power consumption

6.6KW

Solder pot motor/Wave type

90 W × 2/double wave

Solder wave height

Max. 10mm

Conveyor motor

60W

Finger cleaner motor

35W

Outline dimension

3350×1200×1430mm

Net weight

970kg



Solder dross recovery machine HS-DR1400


This machine is designed to  recover, on average, 70-80% pure solder from all wave solder dross as reusable solder. Uses no chemicals or other noxious substances.  10kg each time can be de-dross within 10 minutes. Available for all types of Lead and Lead free solders. Easy to use - less training is required for operator. Just use by side of your wave solder machine. The rapid payback will be over your imagination.





Specification :

Power: 220VAC, single phase
Power consumption: 1.4Kw
Size尺寸: 400mm(W)×270(D)×220(H) Weight: 21.5kg
Temperature control:
Digital PID+SSR
Temperature control range: <400°C
