PCB Depaneling machine, PCB Separator.
PCB singulation
Maestro series with titan coated blade

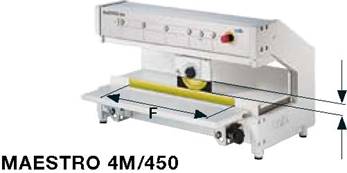

 Maestro 4M


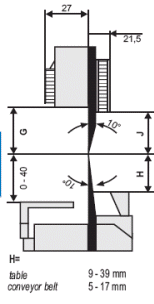

Component height at the edge on the PCB max. 40 mm

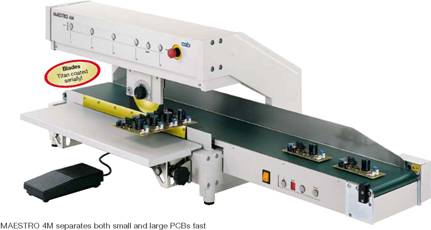

MAESTRO 4M separates both small and large PCBs fast and economically.

To optimize operation, the separation length can be programmed with the control keys. The PCB is placed with its pre-scored groove onto the linear blade. When the foot switch is pressed, the blade carrier with the circular blade moves across the PCB, separating it into individual units.

The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove. The pre-scored grooves can be interrupted by any number of cutouts. If components project above the groove,the linear blade needs to be omitted.

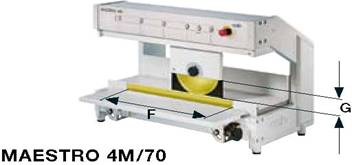

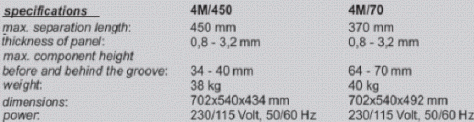

Component height at the edge on the PCB max. 70 mm

Convey or belt for higher performance (Upon request)


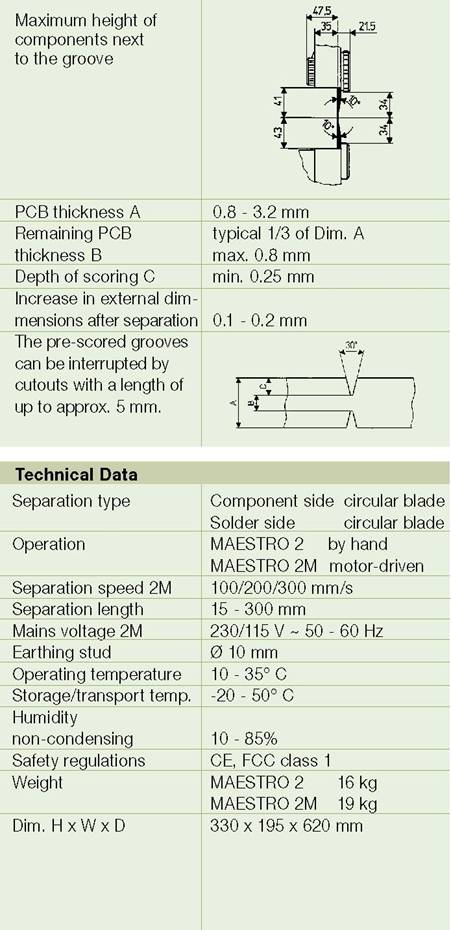

 MAESTRO 2 / MAESTRO 2M

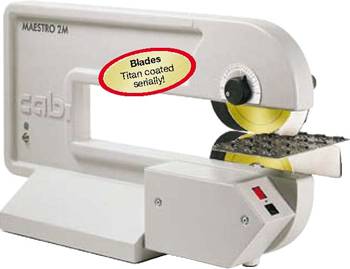

MAESTRO 2 separates small amounts and and proto type series of PCBs fast and economically.

The circular blades and guides made of special steel ensure a long durability. The compact and stable aluminum frame requires only a minimum of space.

The PCB is shoved manually between the circular blades and is there by separated. MAESTRO 2M separates large numbers of PCBs without fatigue of the operator as the lower circular blade is driven by a motor. The PCB is shoved between the circular blades where it is collected,transported and separated. Three different speed levels can be selected.





MAESTRO 2 separates small amount and prototype series of PCBs fast and economically. The compact and stable aluminum frame requires only a minimum of space.

MAESTRO

is the reasonable model to start with, suitable for smaller
numbers of PCBs.
The PCB is fed manually between the circular blades and is
thereby separated.








MAESTRO M motorized

Separates large numbers of PCBs without fatigue of the operator. The lower circular blade is driven by a motor. The PCB is fed between the circular blades where it is seized, transported and separated. Three different speeds can be selected.

Strain of components

Frequently for critical components an upper limit of tensile stress will be determined. Please ask us regarding possibilities to reduce tensile stress of components.









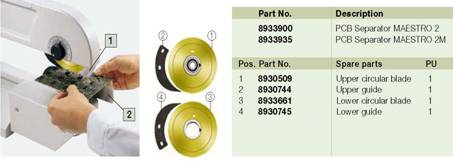

Save Operation

The PCB is held with both hands and fed between the circular blades for separation. The clearance between the upper guide 1 and the lower guide _ is adjustable to ensure that the PCB is only fed through the machine in the pre-scored groove.
