Pneumatic forming machine


Compressed air drive, cost effective, these small machines are flexible for various types of loose radial forming by exchanging tooling set,. Working efficiently even by unskilled operator and free maintenance. This is a best economical solution for small medium production.

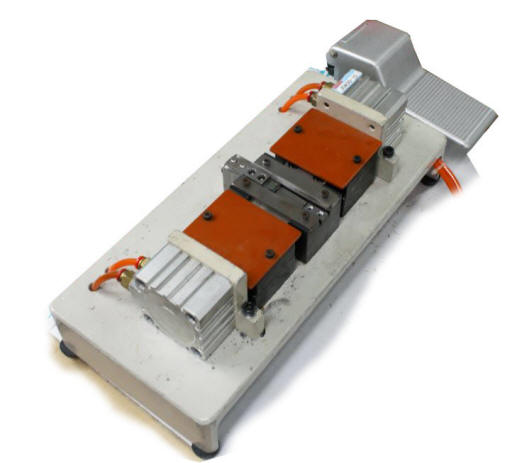

HS-106 Dual cylinder former

Bi-direction loose radial forming/cutting, such as LED, CAP. Diode etc....

Size: Length 420mm(16.5"),Depth 300(11.8"), Height: 200 (7.9").
Weight: 12kgs (26.4#).
Air source: 5kgs/cm2
Example:

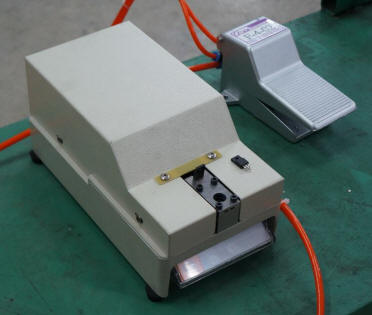

HS-108 Single cylinder former

One direction loose radial forming/ cutting such as power transistor, CAP. Diode etc....

Size: Length 400mm(15.7"),Depth 300(11.8"), Height: 200 (7.9").
Weight: 12kgs (26.4#).
Air source: 5kgs/cm2
Example:
