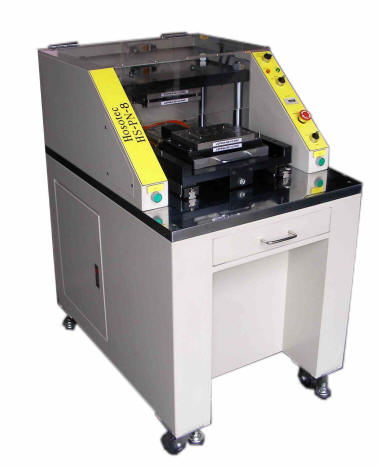

Press type Depaneling machine, PCB Separator.
PCB Singulation
Model
HS-PN


This PCB singulation press is designed for medium or large volume PCBA depanel process.

The model equipped with accurate and reliable die set which completing the cycle in less than 10 seconds. Series models are available, 6 tons out put (HS-PN-06) to 25 tons (HS-PN-25).depends on the requirement of separating the panel board.

The operator needs only load and un-load the panel boards. Security system is installed to prove the safety of the operation.

Specification:

Power Voltage : 100~240VAC
Air pressure: 5Kgf/cm2
Out put :  6~25 ton,
Machine size:
L900mm x W650mm x H1,080m
Weight: 420kg
