PCB Depaneling machine, PCB Separator. PCB singulation
Model

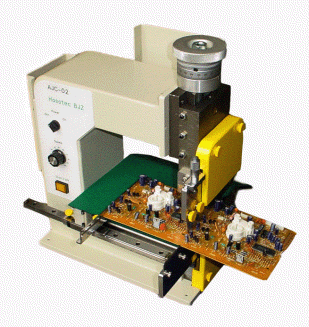

AJC-02
 Compact and rigid construction for separating the pre-scored panel boards without bending stress.

With adjustable guider to guide the PCB and ensure safety in operation.

The blade is made of high speed alloy steel and resharpenable.

Speed free step adjustable

Specification:

Power : 110V/60HZ (220V Optional)
size
: L430 x W430 x H420mm
Weight
: 30kgs

Speed: 0 ~24m/minute, free adjustable
Max. length of PCB: 200mm
For rescored PCB thickness 0.6mm ~ 2.0mm
Precision of depth control (blade and guider): 0.01mm

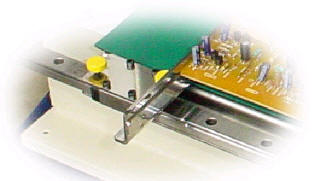

Rail with linear bearing that providing precise
location and hold the PCB smoothly.

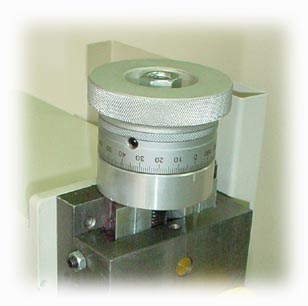

Fine and delicate control the depth of guider (0.01mm) to prove no mistake in PCB separation process.

Precisely control the depth of blade (0.01mm), The blade can be  resharpened

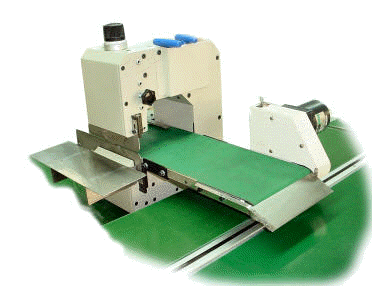

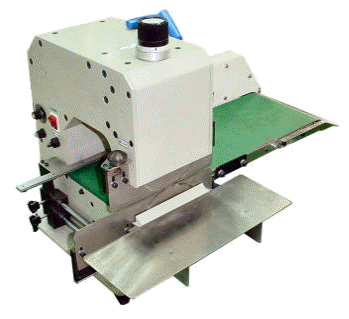

圆刀型PCB切板机   HS-NTG




  • 双圆刀型采用145mm外径刀具,经久耐用。

  • 附切板定位系统,方便大量生产。

  • 附输送带装置,PC切完后,直接送至生产线。

  • 刀片及导片均可配合PC板做微调。

  • 切板速度可由切刀转速做调整。

  • 机械结构坚实,解决PCB 合板作业分板时锡点,零件或线路因折板的应力而受损或产生潜在应力的风险, 一般用于刻有V-cutPC,


    规格:

    电力: 110V/60HZ (220V 选购)
    尺寸
    : L430 x W520 x H520mm
    重量
    :
    45kgs






PCB Depaneling machine, PCB singulation, linear and circular knife

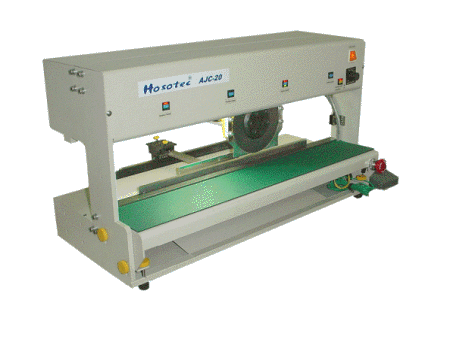

AJC-20



The machine is manufactured to separate the V-cut PC panel boards to prevent bending stress in max width of 420mm. Equipped with 4 position switches to determine the required cutting width.

Equipped with photo-electric security sensor, the operation of machine will be terminated to prevent working hazard by the moving knife.

One re-sharpenable roll-knife (Up side) and one straight knife (low side) is used. The distance between the knives can be easily adjusted by the two knobs underside the straight knife.

Un-skillful personnel can easily operate the machine. Minimal maintenance is required. In case of the sensitive components (such as SMD capacitor) are near the V-cut, would suggest using straight knife model HS-JAW series.

Specification:

Power voltage
AC 110V or 220V
Cutting speed
400mm/Sec Max.free adjustable
Max cutting width: 420mm
Max. component height: Upside 30mm, Lower side:15mm
PCB thickness: 0.4mm ~2.0mm pre-scored PCB
Weight
45kg
Configuration
78cm x 38cm x 40cm

PCB Depaneling machine, PCB Separator,PCB singulation
Model

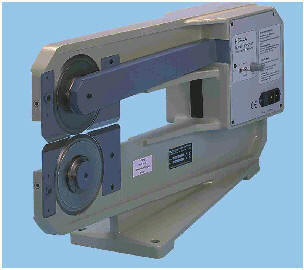

NTG-4, NTG4A
 Economical production of PCBs in panel boards is often put at
risk at the separation stage by the "breaking" method because
components and strip conductors are often damaged.

In order to reduce bending tension during PCB separation, the
manual machine "NTG-4" and the motorized machine NTG-4A
depanel prescored panels by means of two round knives.
Both knives and guiding blades can be continuously adjusted in
height. The ergonomic construction of the machine enables a
high output rate.

The upper knife of the motorized machine NTG-4A is driven by a
toothed belt. This enables non tiring and efficient working. The
drive has a forward and return motion and its speed is
continuously adjustable.
The depaneling machines NTG-4 and NTG-4A are characterized
by their simple operation and ergonomic design.
The new design of the machines with an opening of
87 mm enables the depaneling of panelboards which are
assembled with components up to 47 mm height right up to
the scoring line!



Specification: NTG4NTG4A
Separation length
Max. component height Definitely speed
Weight
Drive



330mm
47mm
Manual
21kgs
Manual
330mm
47mm
0~500mm/s
25Kgs
Electrical 230V/115V
