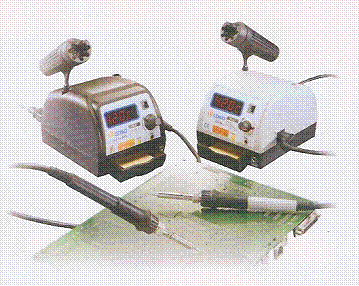

Automatic temperature controlled  Soldering Iron

 Model CS96ESD, CS96 Digital LED display

Specification

Power: 220VAC (110V optional)

Temperature range: 200ºC ~500 ºC

Power consumption: 24V AC/60W

Heating element: Ceramic heater

Standard tip: 900m-T-B

Dimension: 120mm(W) x 170(D) x 105(H)

Weight: 1.7kgs

Packing: 8 pcs/Carton

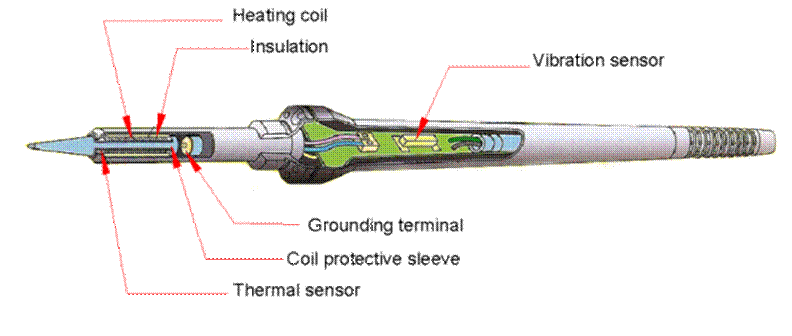

l          Equipped with ceramic heater,20 seconds reaches 300 ºC

l          PID temperature control circuit ensure a stable and precise temperature.

l          Large size LED display the temperature.

l          Pin code controlling the temperature setup to ensure production quality.

l          Acoustics warming system for under temperature operation.

 l          Automatic stand-by and termination system low down the temperature or off the power when the iron is not in use.

l          ESD prove circuit is applied in the machine(CS96ESD)

 l          Durable and long life soldering iron over your expectation.

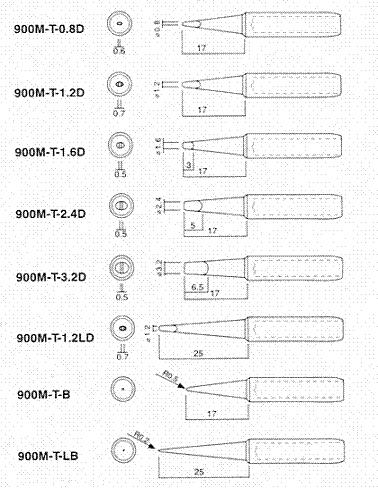

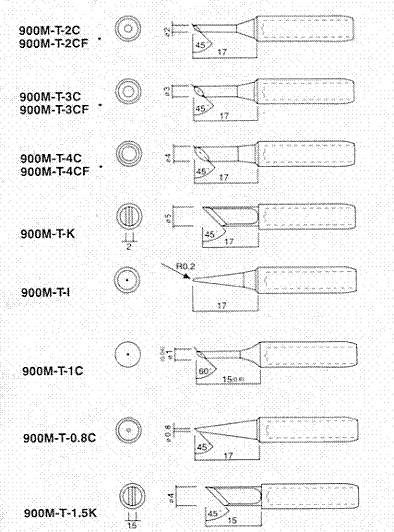

 Iron tips
