PCB depaneling machine- PCB singulation
Series machines are offered - economical single round knife model, multi-blade, straight knife model.Press type and PC controlled
milling cutting machine
 |   |

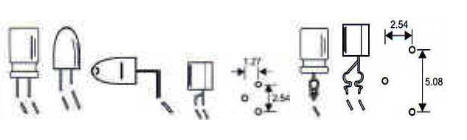

Taped radial lead former/ Cutter
Form ,bend and cut the component leg by exchanging the tooling set.
|
    |

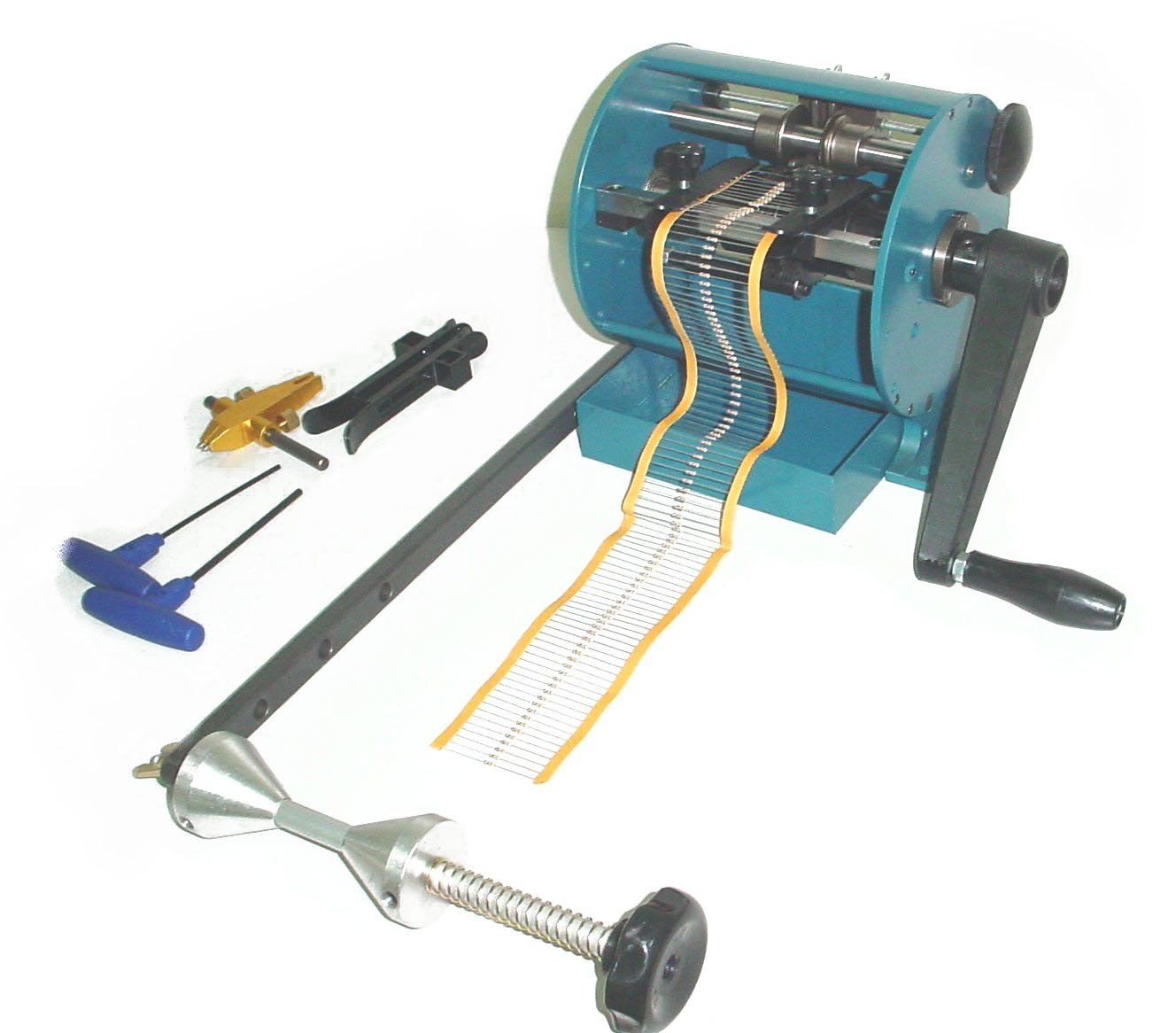

Taped axial lead former/ Cutter
Economical selection for bending and cutting operation HS-301U
HS80 for axial cut and bent, HS-301F HS-80F for vertical mount forming,

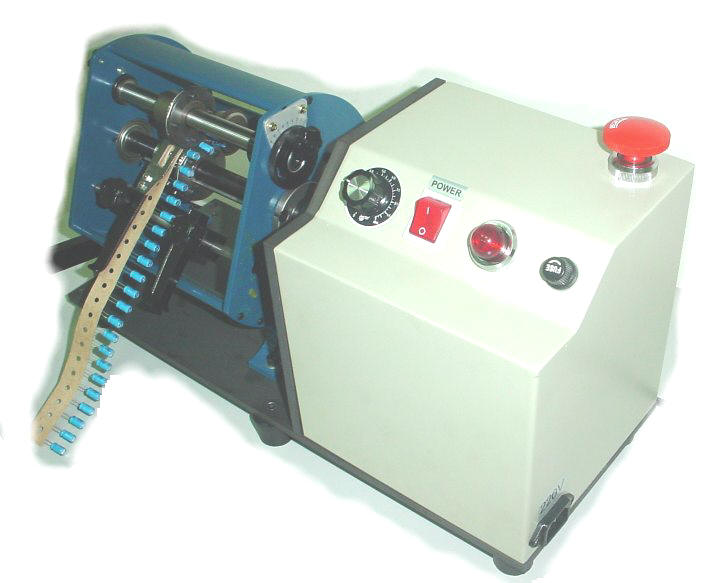

motorized model available
for efficiency works
|

|
Loose radial lead cutter
-
For
loose radial lead
Cutting,
equipped with linear feeder, lead length adjustable.
Extensible by various bowl feeder to handle automatic feeding.
|
  |
PCB Lead cutter
-
Trimming the wire lead of PCB assembly after soldering process. with special design clamp fingers, PCB carrier is unnecessary. Warp prove device is equipped to prevent damage on the board during process.
|


|
Pneumatic component former
-
tailor made tooling for wide range of component forming.
|
  |

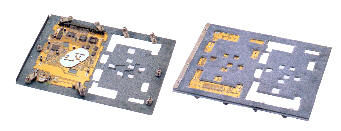

PCB
Carrier,
wart proof tools SMD
reflow carrier,
Full Process Carrier
Tailor made
to various size to meet requirements
|
   |
Power transistor former -
Tailor made tooling set to form various kind of power transistor.
|  |
Component Counter
Multi-purpose, microcomputer based components counter which count axial and radial components and adapter for SMD components.
Equipped with special design arm set for either axial, radial and SMD tapes
|   |
IC Former /
Straighter
-
3 styles are available- straightening, cutting and forming by impact model.
Rolling type works in high efficiency and IC lead width is free adjustable
|
  |
Automatic Flux controller-
Total solution for poor soldering because of flux
application. Automatic control and monitoring the flux destiny and lever in wave soldering machine. Will supply the thinner or flux automatically
|
 |
Micro-processor controlled strip cutter
-
For cutting various of thin material such as heat-shrink tube, insulation paper, cable, metal film . Programmable for cutting length and speed control in the panel.
|
 |
|
Solder Wire V- Cutter HS-VC6A
The machine is designed to
V-grooved the solder wire to improve the soldering quality
|
 |
Label Detaching machine HS-LB90
Automatic detaching the Label, the back liner can be rewound.
Paper clinching mechanism is design for easy the paper exchanging.
|
 |
|
Solder Pot
Series model and size
available
|
  |
Lead free -wave soldering machine
Designed to meet VOC-free fluxer and
Lead free solder production. Economic model is available.
Solder dross recovery machine
HS-DR1400
designed to recover, on average, 70-80% pure solder from all wave solder dross as reusable solder.
Uses no chemicals or other noxious substances.
|   |
High speed crimping machine
HPCM2500High speed production 0.6~0.9 sec (adjustable)
Stripping and crimping in one step, the waste can be cleaned by equipped
dust remover
|
 |
Automatic Wire Cutting/Stripping/Twisting Machine Model
HS-WCST06
Fully automatic function of wire cutting, Stripping and Twisting.
|  |
Purifying Work Table
10-100 grade Vertical laminar flow stand type clean work table.
|
 |
| | |
